Description

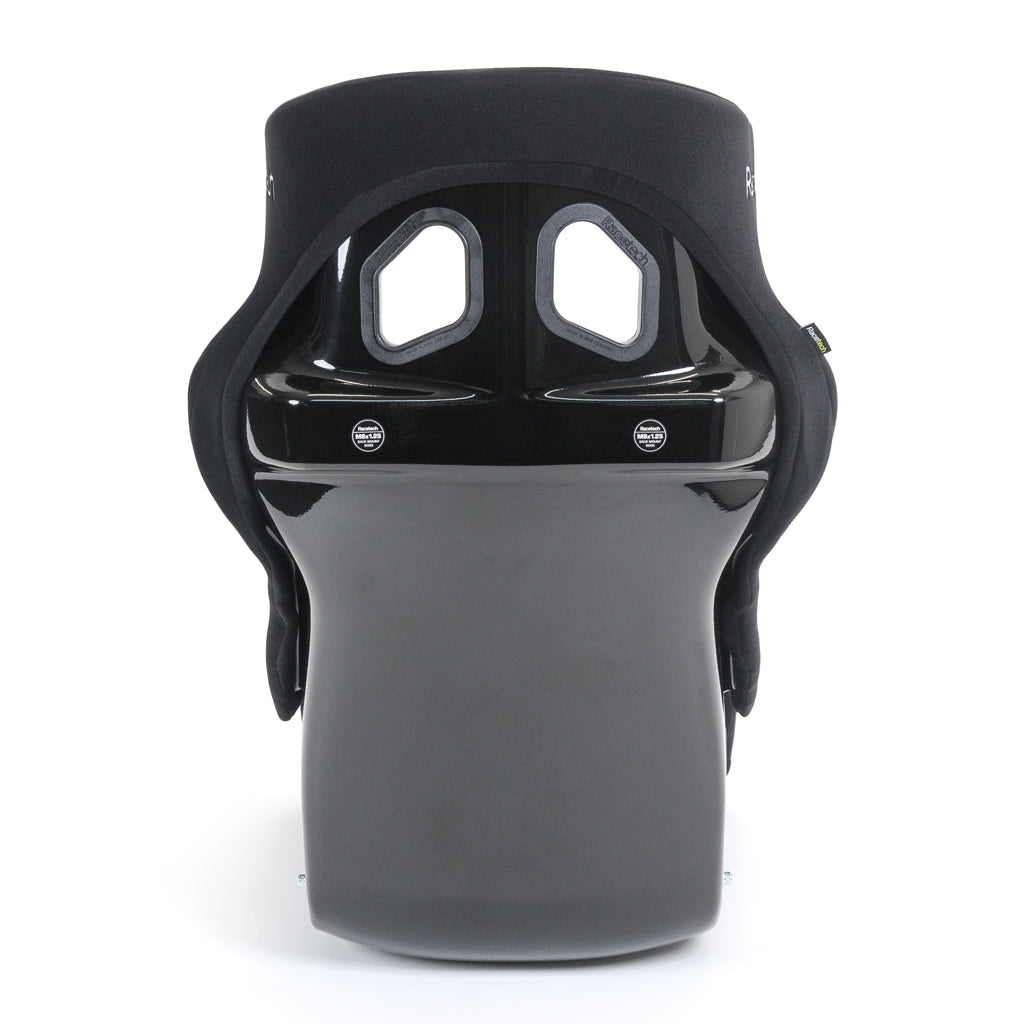

Racetech - RT4100HR Racing Seat
The RT4100HR is a standard-sized fiberglass race seat equipped with head restraint wings for enhanced safety. We have focused on achieving a lightweight seat shell with optimized geometry, straddling that line between designing the seat to be wide enough in the shoulders to suit the athletic build, but narrow enough to fit in most cockpits.
The Racetech patented back-mounted technology has trickled down from the 119 and 129 Series, giving you the option of fixing the seat to the rollcage at shoulder level. Large harness guides and a removable molded base cushion allow a range of drivers of varying heights to fit. Breathable Spacer fabric, parallel sides and pronounced thigh support round off the features of this accomplished motorsport seat.

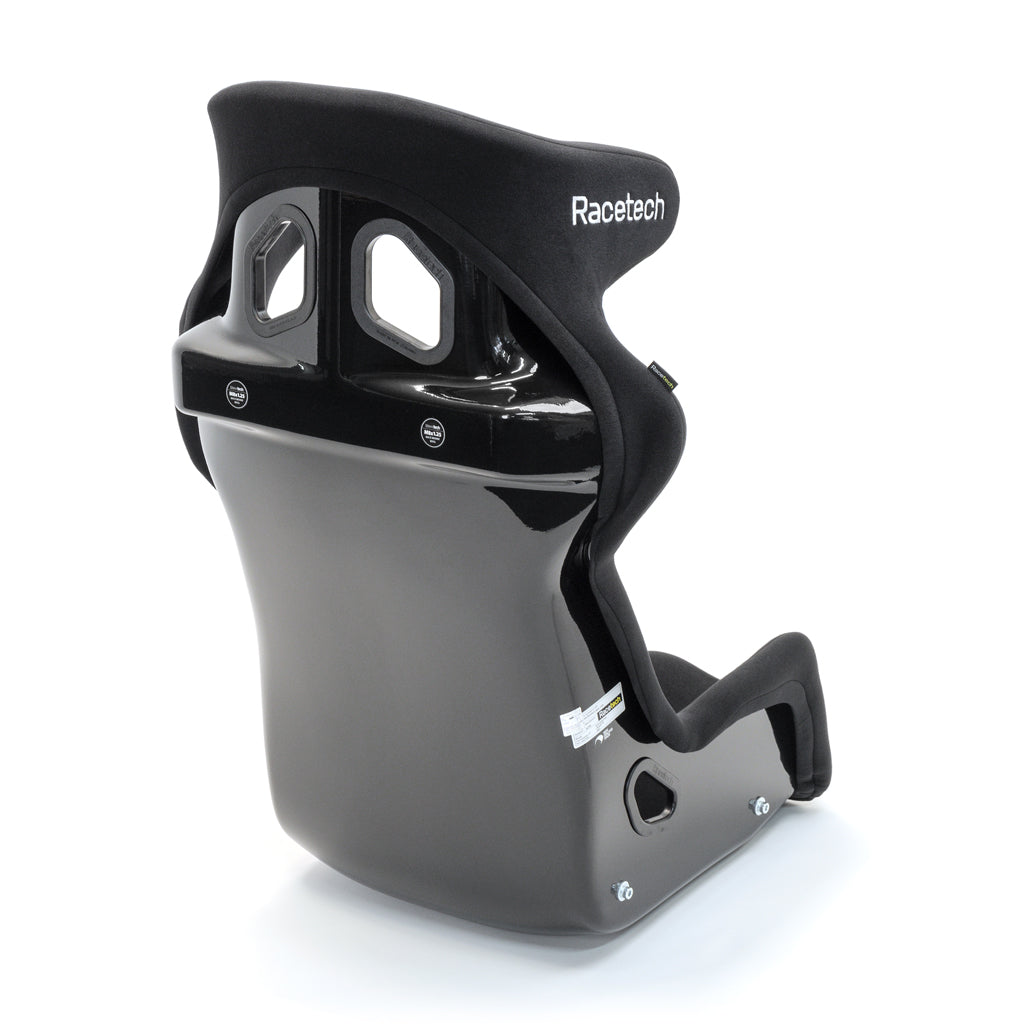

For the larger driver, the RT4100WTHR is 60mm taller and 40mm wider and for those wanting a seat without head restraints, our RT4100 and RT4100WT complete the 4100 Series. The 4100 Series seats use Racetech RTB1009M alloy side mounting brackets.
FIA Homologation 8855-1999
- RTB2009S - Steel Side Brackets
- RTB1009M - Alloy Side Brackets
- RTB3115B - Adjustable Alloy Back Bracket
- RTB2115B - Alloy Back Bracket
- RTB2005Cxx - Alloy Rollcage Clamps
Dimensions and Weights:
RT4100HR
Material : Fiberglass composite
Shell Weight : 6.5 kg
Total Weight : 8.4 kg
Mount Width : 40 cm
FIA 8855
A | 60 |
B | 56 |
C | 38 |
D | 47 |
E | 50 |
F | 87 |
G | 63 |
Dimensions in cm
RT4100WTHR
Material : Fiberglass composite
Shell Weight : 7.0 kg
Total Weight : 8.9 kg
Mount Width : 44 cm
FIA 8855
A | 64 |
B | 62 |
C | 42 |
D | 51 |
E | 50 |
F | 93 |
G | 69 |
Dimensions in cm
Application | |
Common Applications | From clubsport to national-level circuit and rally |
Stock Color / Material | |
Gel-coat | Gloss black |
Seat Cover | Black fire-retardant nylon fabric with Spacer mesh through the torso |
Wear Patches | N/A |
Technical | |
FIA Homologation | 8855-1999 |
Shell Construction | Fiberglass Composite |
Shell Weight | From 6.5kg |
Sizes | HR - Standard WTHR - Wide & Tall |
Design | |
Head Restraint | Integrated head restraint |
HANS Compatible | Yes |
Harness Compatibility | Up to 6-point harness |
Large Harness Guides | Yes |
Air Ducting | N/A |
Back-mount Compatible | Yes |
