Mishimoto - Oil Cooler Kit - 01-07 Mitsubishi EVO 7/8/9
This oil cooler kit includes direct-fit, application-specific brackets and durable preassembled stainless steel oil lines with -10AN fittings for a bolt-on installation that completely replaces your stock oil-cooling unit. The large and efficient Mishimoto 25-row, stacked-plate oil cooler will decrease oil temperatures by up to 30 degrees and reduce oil degradation, resulting in proper lubrication of engine and turbocharger components even under the stress of competitive driving.
Combine this oil cooler kit with the Mishimoto Lancer Evolution Performance Aluminum Radiator and silicone radiator hose kit for complete control over your engine fluid temperatures! As with all our products, this kit includes the Mishimoto Lifetime Warranty.
- Direct fit for the 2001-2007 Lancer Evolution 7/8/9
- Minimal pressure loss
- 10% greater cooling efficiency than stock
- Stealth Black or Sleek Silver color options for the cooler
- Includes braided stainless steel lines
- Mishimoto Lifetime Warranty
Material 6061 Aluminum
Core Height 7.32"
Rows 25
Cooler Construction Stacked-plate
Note
Recommended torque specification for all straight fittings and banjo bolts: 15-25 ft/lbs (operating range). Do not exceed the maximum torque rating of 35 ft/lbs.
Core Thickness 1.97"
Core Length 11"
Fitting Size -10AN
Engine Codes 4G63
Chassis Codes CT9A
Pressure Drop 2-3 psi
Install Torque Specs
Recommended torque specification for all straight fittings and banjo bolts: 15-25 ft/lbs (operating range). Do not exceed the maximum torque rating of 35 ft/lbs.
Caution
It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
Increase In Oil Capacity No increase
Temp Difference 20-30°F

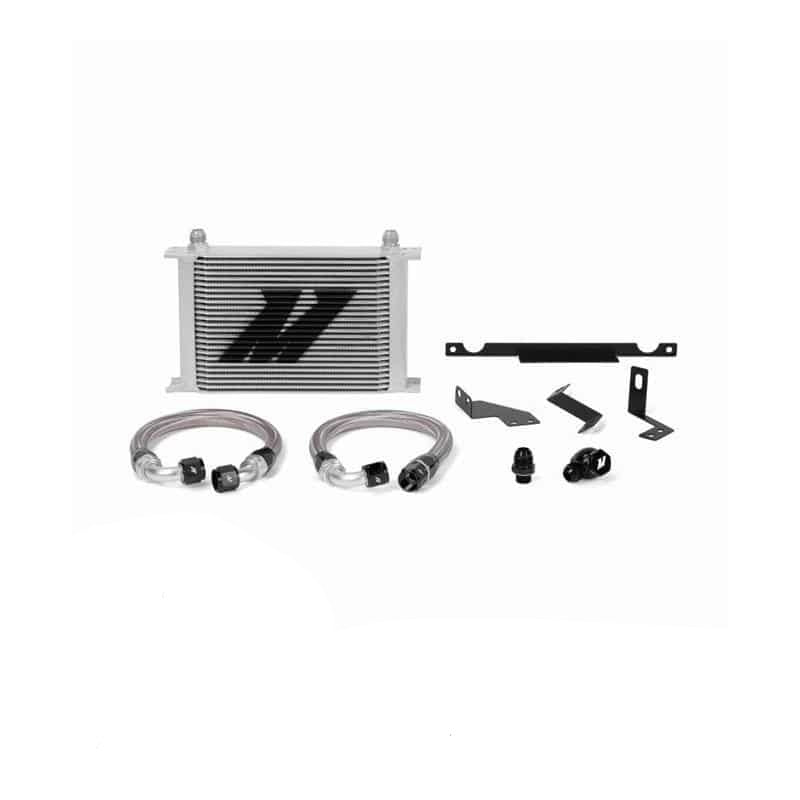

Purchase Includes
(4) Application-Specific Mounting Brackets
(1) 25-Row Oil Cooler (Silver or Black)
(1) 1ft, 4.5in Stainless Steel Braided Hose with 90 Degree and Straight-10AN Fittings

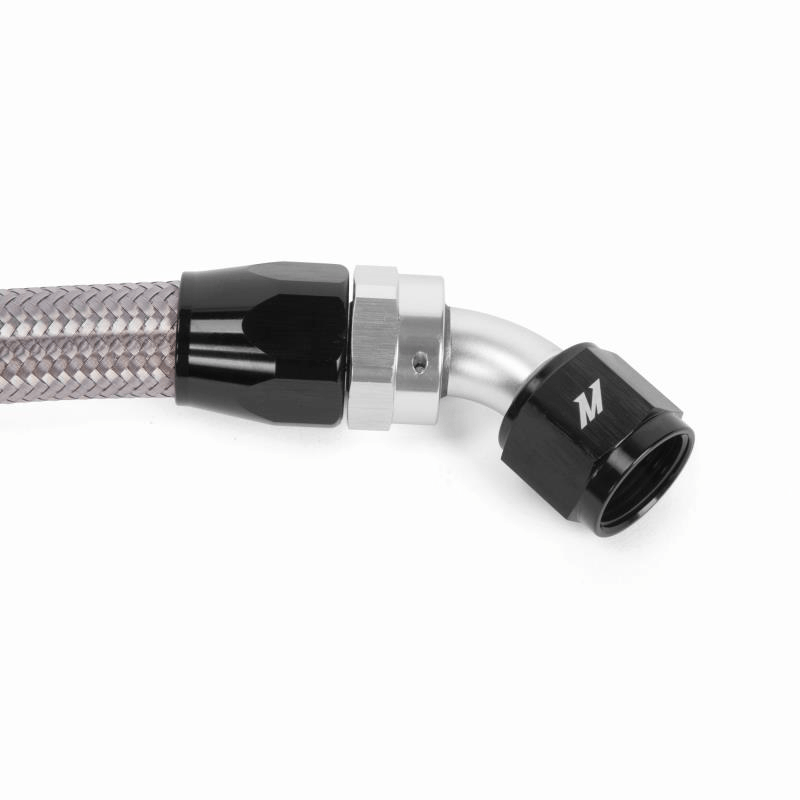

(1) 1ft, 3in Stainless Steel Braided Hose with 45 Degree and 90 Degree -10AN Fittings

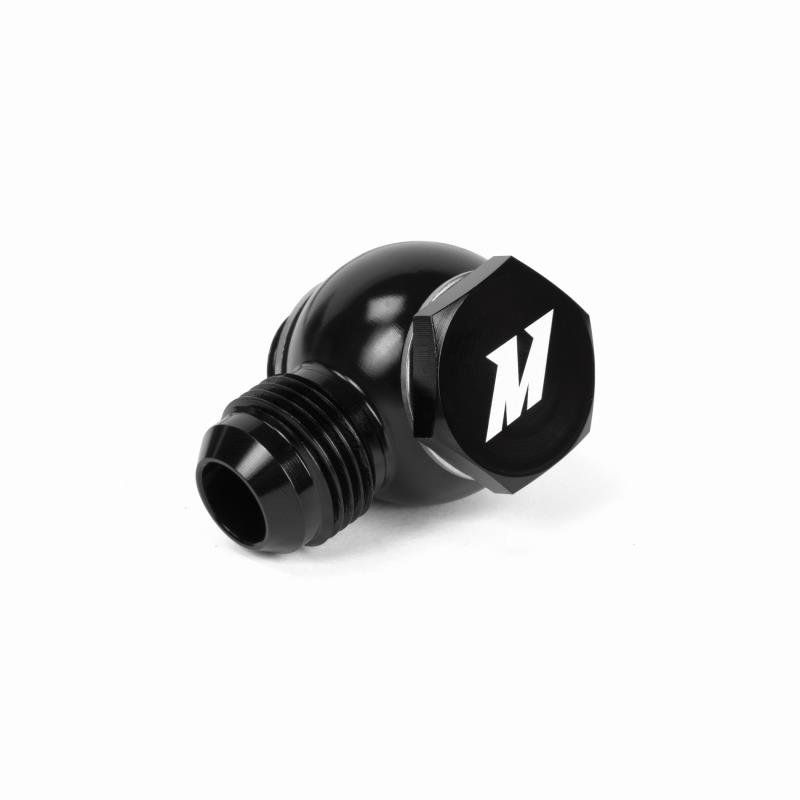

(1) M18 x -10AN Straight Fitting
(1) Banjo Fitting w/ Bolt M18 x -10AN, Black
(1) Mounting Hardware Set
Mishimoto Lifetime Warranty
