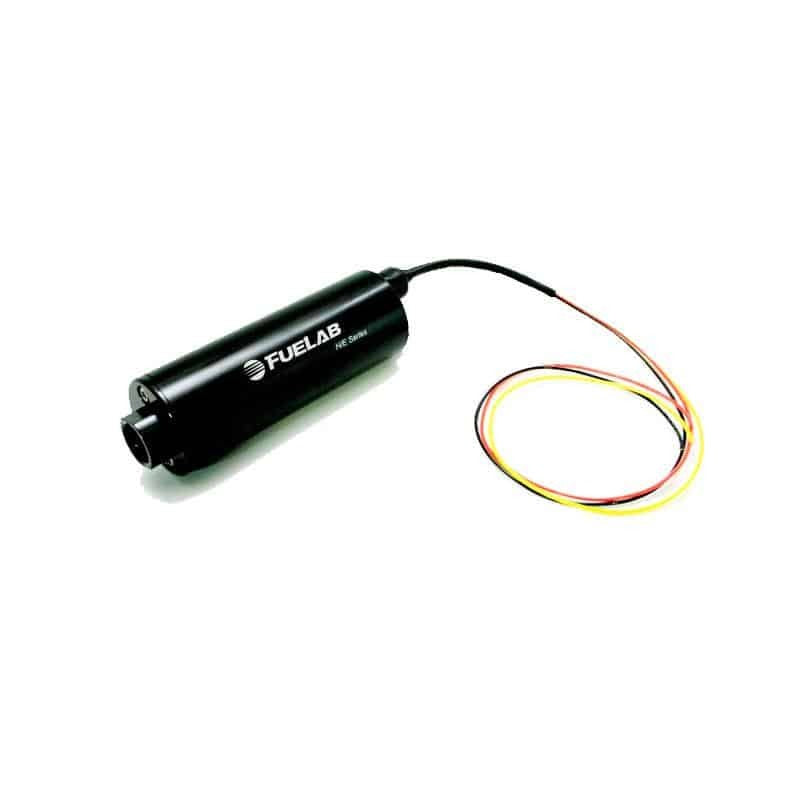

FUELAB - 48403 - H/E Series Twin Screw Pump
500 LPH @ 45psi, 13.5v – RATED UP TO 1250+HP – Unequaled power and efficiency
Fuelab continues to lead the way in fuel pump innovation. Our H/E Series of brushless twin screw pumps represent a giant leap in efficiency and reliability. These pumps use a lightweight, DC brushless motor to reduce current draw to incredibly low levels while maintaining flow at pressures up to 125psi. Combined with a twin screw rotor pumping mechanism, they offer superior priming capabilities, improved resistance to cavitation, and fuel compatibility with gasoline, diesel, methanol and ethanol fuels.
Compatible with 12v and 16v electrical systems. The 474xx series is a billet aluminum external only pump with integrated controller. The new 484xx series is an in-tank or external version that can be run by existing vehicle outputs for brushless control or any of our 7200x models for external control. Choose from 250, 350, and 500 LPH flow options.
Compatible with gasoline, diesel, methanol and ethanol
Twin Screw Rotor Pumping Mechanism
125PSI Max Operating Pressure
1250+ HP power support
Higher efficiency means less current draw and less noise
Superior Priming Capabilities
Greater resistance to cavitation (vapor lock)
Backed by a 2 year limited warranty
Lightweight super-efficient DC brushless motor to minimize current draw
Powerful high flux density Neodymium rare earth magnets
No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
Wet motor design, no dynamic shaft seals that can wear out
8 to 16 volt vehicle electrical system compatibility
Variable duty motor speed
Can be run by existing vehicle outputs for brushless control or our 7200x Series controller
Compact, lightweight design, less than 1.5lbs. Overall length 6.5”, diameter 2”
Billet Aluminum Construction with anodize per MIL-A-8625 Type II
Can be mounted in-tank or externally
Long Life, multi-fuel compatible Fluorosilicone static seals
Accepts standard or port style -8AN fittings
