Diode Dynamics - SS3 LED Fog Light Kit for 2015-2017 Subaru WRX/STi (w/ Eyesight Package)

Diode DynamicsSKU: DD6177

Price:
Sale price$279.95

Shipping calculated at checkout

Description

Diode Dynamics - SS3 LED Fog Light Kit for 2015-2017 Subaru WRX/STi (w/ Eyesight Package)

Enhance the fog lights on your Subaru WRX/STi with the SS3 LED Fog Light Kit! These LED pods have been specially engineered with custom TIR optics to produce powerful and practical beam patterns, surpassing all other 3" lights in intensity. Thanks to the included round bezel, the kit has a sleek, factory-like look while providing significantly increased brightness. A durable design ensures long-lasting performance.

Features

  • Direct replacement for Subaru WRX STi fog lamps
  • SAE-compliant road-legal output
  • Includes round bezel, for factory-style appearance
  • Plug and play, no modification needed
  • Advanced TIR optics provide high efficiency and focus
  • Durable powdercoated aluminum die-cast
  • Engineered and Assembled in USA

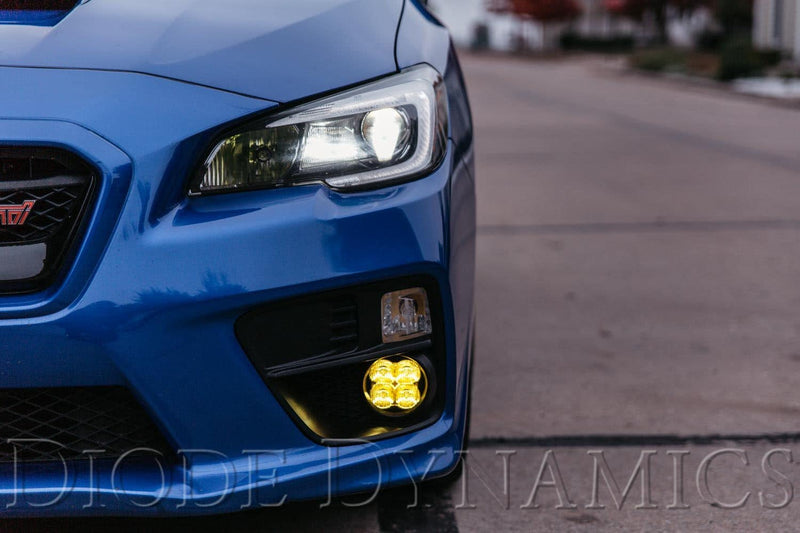

Plug and Play. The installation process for the Diode Dynamics - SS3 LED Fog Light Kit for 2015-2017 Subaru WRX/STi (w/ Eyesight Package) is quick and easy thanks to custom-molded brackets. In just a few minutes, you can remove your factory fog light assembly and replace it with ours, with no additional wiring needed. We even provide wire adapters to connect the lights to your factory bulb sockets.

Focused.Conventional reflectors or basic lenses typically lose light internally and to glare, meaning not all light is directed towards the intended target. On the other hand, the SS3 features a specialized TIR optic that gathers all LED light and directs it precisely where it is needed, significantly reducing glare and maximizing overall efficiency.

The SS3 utilizes a custom-molded TIR optic that serves as both the optic and main lens for maximum light output and efficiency. Unlike other options on the market that lose up to 10% of light output through an outer lens, the SS3's innovative design allows for a greater total intensity when combined with high-intensity LED chips. This sets it apart from LED pods that use basic optics or reflectors with a standard outer lens.

SAE Compliant. All beam pattern options for the Stage Series were created using precise optical simulation modeling, resulting in a functional and efficient output.

SAE Driving is designed to supplement your high beams, but it’s great for general illumination as well. Rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in an 18x8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds.

SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather.

When installed as a pair and properly aimed to comply with state regulations, the Driving White pattern meets the SAE J581 standard for Driving/Auxiliary High Beam Lights, while the Fog pattern meets the SAE J583 standard for Foglamps, allowing for legal use on the road. It is important to refer to local laws and regulations for proper aiming, installation, and suitability.

White or Yellow. The Stage Series LED pods are offered in either cool white or selective yellow. With a color temperature of 6000K, the white option provides a genuinely cool white output that complements many factory LED lighting. Meanwhile, the 3000K selective yellow option is ideal for enhancing visibility in inclement weather or achieving a unique appearance while driving.

Sport or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. Whether it's a Subaru or anything else, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!


What's Included

In the Box:

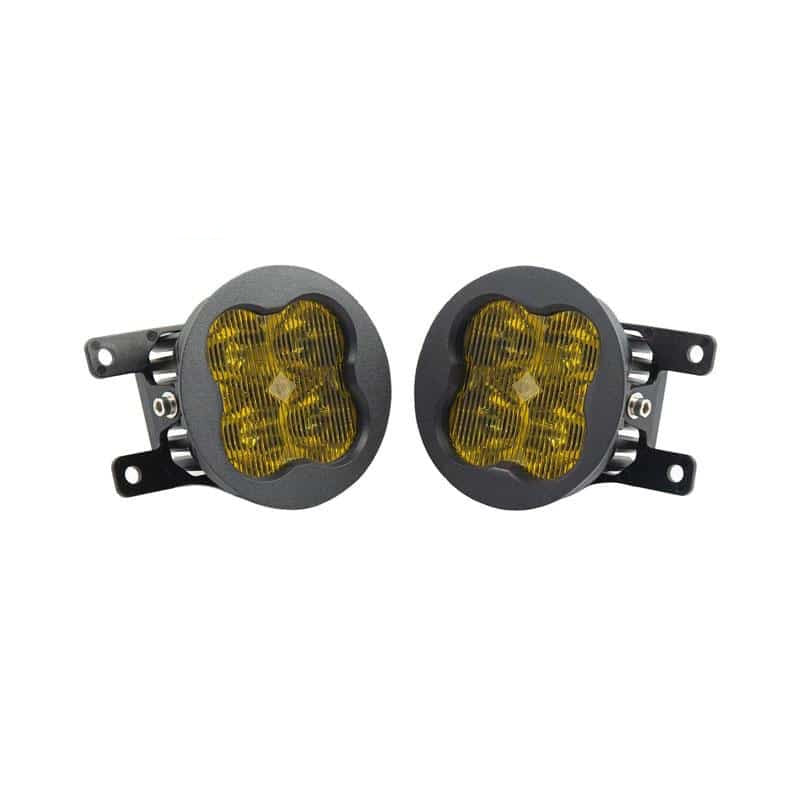

  • Two (2) SS3 3” Round LED Pods
  • Two (2) H11 DT Adapters
  • Mounting brackets and hardware
Quantity: Two (2)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

Application: Fog Light
Make: Subaru
Model: WRX STi
Years: 2015, 2016, 2017





Specifications

LENS COLOR/OPTICS

PEAK BEAM INTENSITY
(CANDELA)

ILLUMINANCE
(LUX @ 10M)
MEASURED OUTPUT
(LUMENS)
RAW OUTPUT
(LUMENS)
OUTPUT COLOR
Driving White Sport 54,700 cd 547 lux 1,520 lm 2,262 lm 6000K White
Driving White Pro 66,500 cd 665 lux 3,000 lm 5,796 lm 6000K White
Fog White Sport 10,600 cd 106 lux 1,520 lm 2,262 lm 6000K White
Fog White Pro 11,900 cd 119 lux 3,000 lm 5,796 lm 6000K White
Fog Yellow Sport 9,050 cd 91 lux 1,300 lm 1,930 lm 3000K Yellow
Fog Yellow Pro 10,900 cd 109 lux 2,700 lm 5,220 lm 3000K Yellow
Beam Angle: Driving, 20°x8°, Fog, 80°x8°
Power (watts): Sport: 14.5, Pro: 36
Operating Voltage: 9-16V
Current (amps @ 13.2V): Sport: 1.1, Pro: 2.7
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES, Cree XP-L HI
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test
Intrusion Ratings: IP67 Weatherproof
