FUELAB - 51501 - 515 Series Bypass Fuel Pressure Regulators - 10AN inlets - 25-90 PSI
10AN Inlets / Standard Seat / EFI (25-90 PSID)

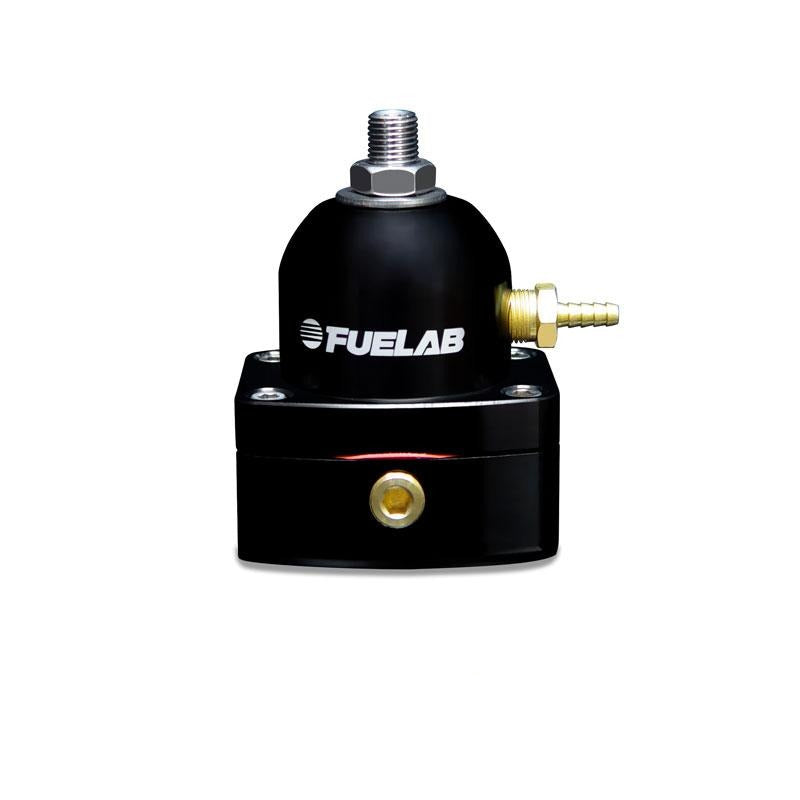

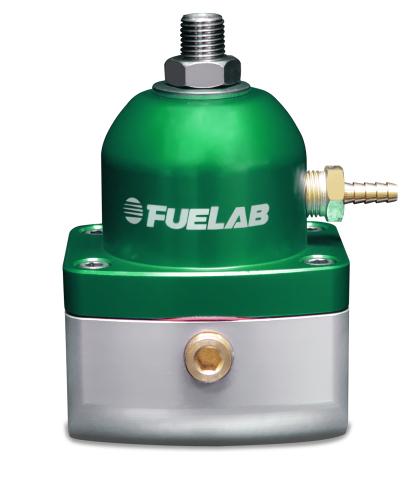

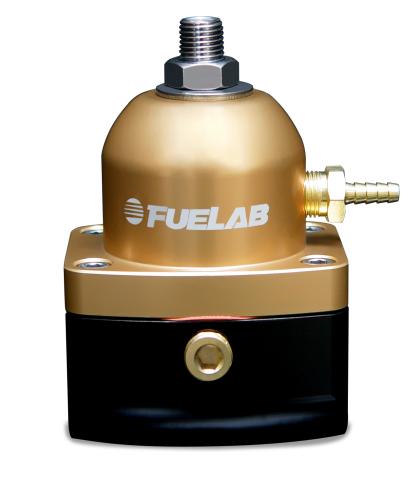

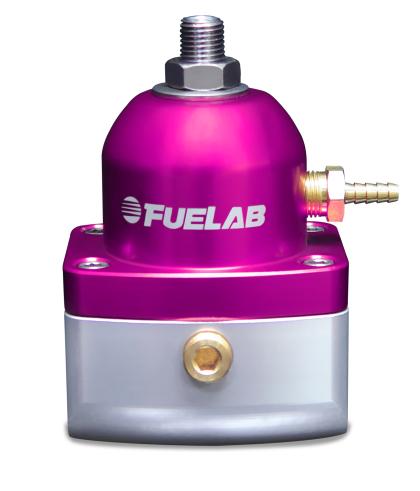

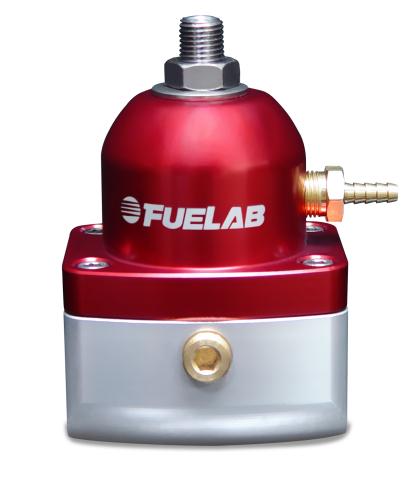

FUELAB® 515 Series Fuel Pressure Regulators are designed with performance and flexibility in mind. They accept port style and non-port style union fittings without interference. Several configurations are available, supporting carbureted applications as low as 1 PSID to fuel injected applications up to 125 PSID. The 515 Series Fuel Pressure Regulator has a -6AN return port located on the bottom.
FUELAB® 515/525 Series Fuel Pressure Regulators are designed with performance and flexibility in mind. They accept port style and non-port style union fittings without interference. Several configurations are available, supporting carbureted applications as low as 1 PSID to fuel injected applications up to 125 PSID. The 515 Series Fuel Pressure Regulator has a -6AN return port located on the bottom. The 525 Series has its return port in-line with the inlet port (not on the bottom) which allows for easy installation in extremely tight locations.
FUELAB® 535/545 Series Fuel Pressure Regulators have all the same great features as our 515/525 series, only smaller and weigh 50% less.
FUELAB® 565 Series Fuel Pressure Regulators have all of the same great features as our 515/525 Series except for extreme capacity. Utilizing a massive ½” return orifice and -10AN ports, these regulators hold no bounds. With the bypass capability over 5 GPM at 5 PSI, this new regulator can handle blow through carbureted applications well over 1800 H.P., and for EFI applications using belt driven fuel pumps; even further (with a flattened regulation slope). Regulator comes in four different pressure ranges covering applications between 4 and 80 PSI.
Two -10AN inlet ports and one -6AN return port
Gasoline, diesel, methanol, and ethanol fuel compatible
Billet Aluminum with anodize per military MIL-A-8625, Type II
Fine thread pitch for precise pressure adjustment
Versatile mounting bracket and stainless steel hardware
1/8” NPT gauge port with plug for external pressure gauge
1/8” NPT pressure reference port with barbed fitting
Backed by a 2-year limited warranty
