FUELAB - 41404 - PRODIGY Series - Carbureted In-Line Fuel Pump
FUELAB PRODIGY line of DC Brushless fuel pumps stand alone as the benchmark of what demand based fuel systems can do. Each PRODIGY pump is hard built, tested and certified at our facility in Collinsville Illinois under strict quality and rigorous testing guidelines before shipping. We have 11 innovative models available ranging in performance levels to give you the confidence and competitive edge you demand.
200 GPH @ 20 PSI – RATED UP TO 1800HP Developed from our successful 41403 model, we take all the benefits of a high flow in-line pump and integrate a bypass valve directly into the outlet assembly of the pump.

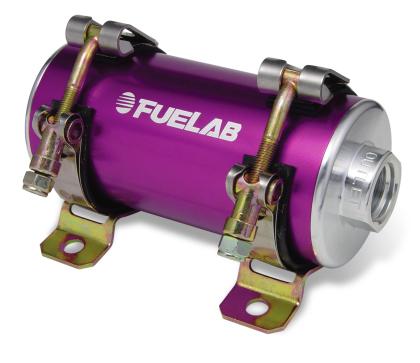

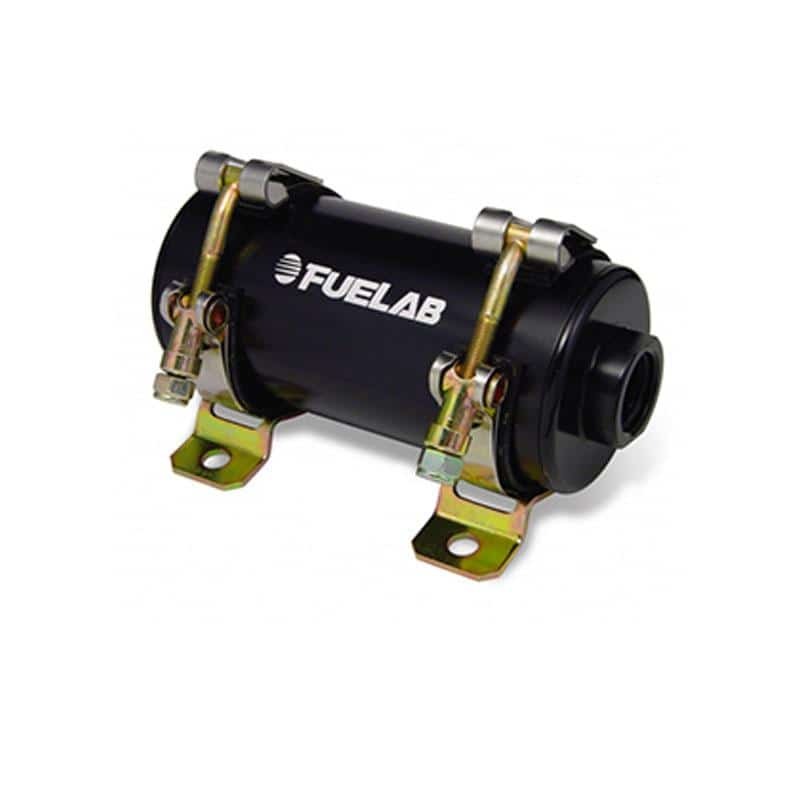

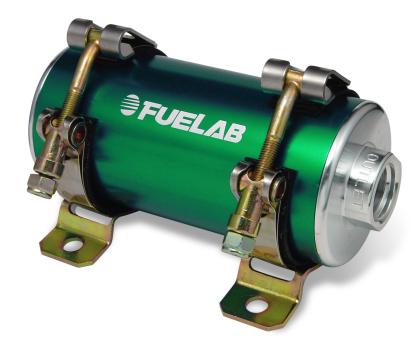

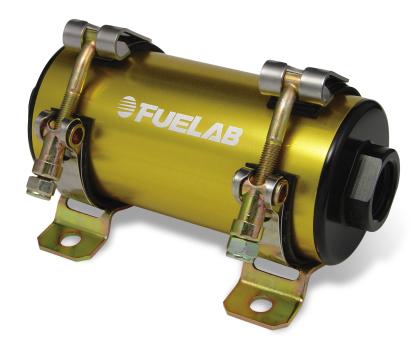

Also available in RED, BLUE, PURPLE, GOLD and GREEN
Pump Features
Compatible with gasoline, diesel, methanol, and ethanol
Externally bypassed at 25 PSI
High efficiency sling vane positive displacement pump
Special housing shape for extremely quiet operation and steady pressure
Carbon 9-vane construction with pressure balanced rotor for high reliability
Backed by a 2-year limited warranty
Motor Features
Lightweight super-efficient DC brushless motor reduces current draw
Low mass rotor for high speed reaction to changes in speed and flow
Powerful high flux density Neodymium rare earth magnets
No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
Wet motor design, no dynamic shaft seals that can wear out
Electronic Features
Internal speed controller for variable flow operation
12 to 16 volt vehicle electrical system compatibility
Accepts PWM input for speed control
No expensive add-on voltage regulators or pump controllers required!
Continuous duty–motor speed can be adjusted
Construction Features
Compact, lightweight design, less than 3 lbs, overall length 6.9″, diameter 2.63″
Billet Aluminum Construction with anodize per MIL-A-8625, Type II
High quality mounting brackets included
Long-life, multi-fuel compatible Fluorosilicone static seals!
Accepts standard or port style –10AN fittings
