Diode Dynamics - Stage Series 12" SAE/DOT Amber Light Bar

Diode DynamicsSKU: DD5037S

Sale price$199.95

Shipping calculated at checkout


Diode Dynamics - Stage Series 12" SAE/DOT Amber Light Bar

Providing unparalleled functionality, Diode Dynamics presents the STAGE SERIES LED lighting. Designed with the compact size and custom-engineered TIR optics needed by professional rally drivers, these light bars offer a durable and effective beam pattern.


  • Advanced TIR optics provide high efficiency and focus
  • High-intensity automotive-type LEDs with pure white color
  • Available in Driving, Wide or Flood beam patterns
  • Slim 42mm housing for low-profile fitment
  • Durable matte powdercoated extrusion

What's Included

In the Box:
  • One (1) LED light bar
  • One (1) wire pigtail
  • Universal bracket set
Quantity: One (1)
  • Two (2) M6 Hex Screws, for main mounting point
  • Two (2) M5 Hex Screws, for rear mounting point

The initial step was creating a slim extruded housing for easy installation in compact spaces. At a height of under 42mm, these lights can be placed in areas where traditional dual-row light bars cannot, all while significantly reducing the overall weight.

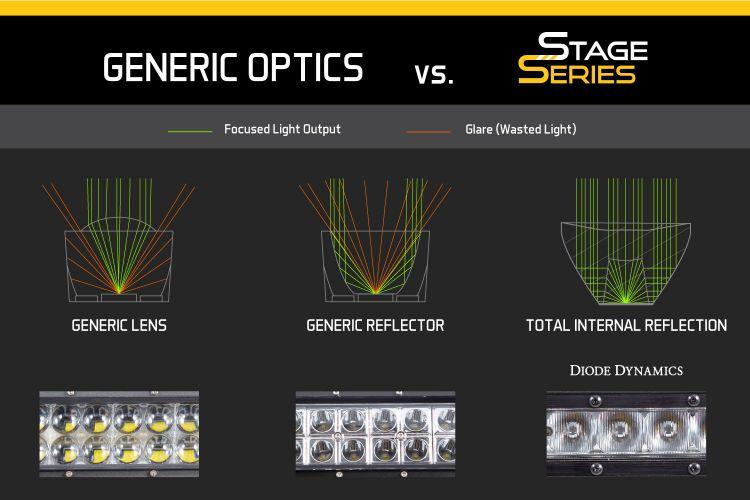

Although compact in size, these light bars do not lack power thanks to the high-intensity Lumileds LED chips and our U.S. PATENT PENDING total internal reflection (TIR) optic. The Stage Series has a significantly higher total intensity compared to standard light bars with basic optics or reflectors, which often lose light internally and to glare, resulting in light being spread in multiple directions. Our TIR optic collects and directs all of the light from the LED, minimizing glare and maximizing efficiency.

This TIR optic was designed with optical simulation modelling, to shape the output in a highly-functional beam pattern. Rather than a simple "spot" pattern, the Stage Series has a rectangular Driving pattern, far more useful for directing light downrange at high speeds. And instead of a standard "flood," the Wide option provides an extremely wide field of view, without wasting any light in the sky above. These light bars provide light where you want it, and don't shine where you don't.

When installed as a pair and properly aimed to meet your state's regulations, the Diode Dynamics - Stage Series 12" SAE/DOT Amber Light Bar features a Driving pattern that is compliant with SAE J581 as a Driving/Auxiliary High Beam Light and a Wide pattern that meets SAE J583 requirements for use as a Foglamp. Please ensure to check your local laws and regulations for accurate installation, aiming, and suitability.

All Stage Series LED lighting products use a standard Deutsch-style connector, and come with a 1-foot pigtail, with bare leads. You can wire yourself, or select an optional wire harness.

Diode Dynamics is pleased to offer a limited 8 year warranty on all Stage Series products.

Total Power: 58.8 watts
Current Draw: 4.2 amps @ 14V
Peak Intensity: 57,750 candela
Intensity @ 10m: 578 lux (Driving)
Raw Output: 2280 lumens
Measured Output: 1600 lumens
Output Color: 2000K Amber
Total Dimensions: See images above.
Weight: 2.2 lbs
Connector: Deutsch DT

Installation Guide

8 Year Limited Warranty
In addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage.
